- Features
- Highlights
- Quality control
- Warranty
Important quality control

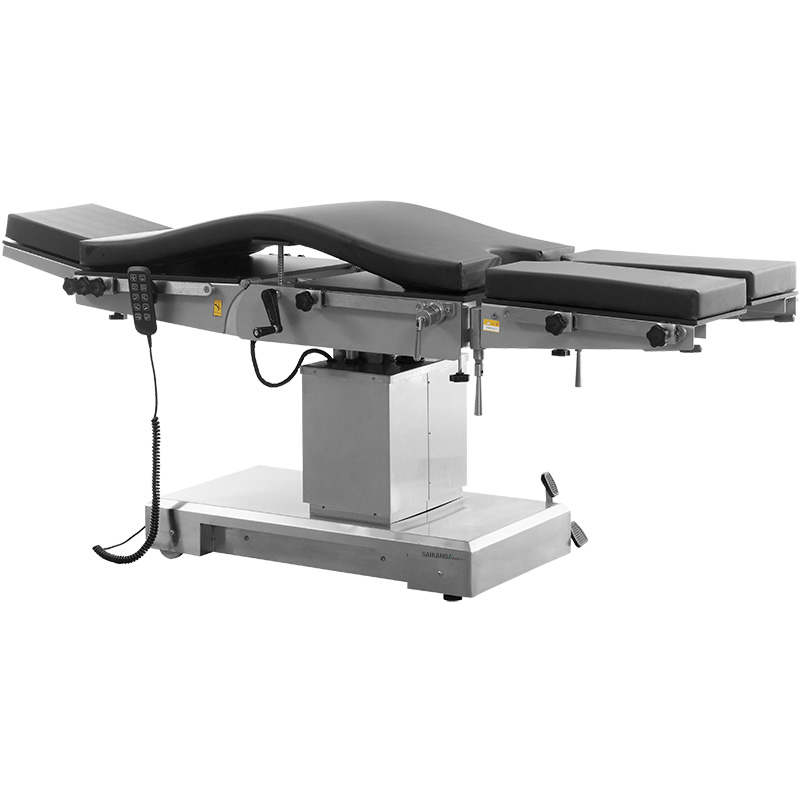

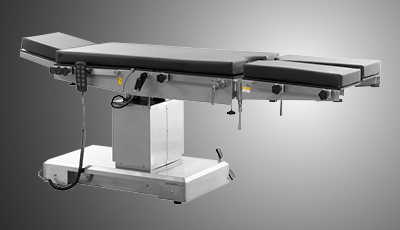

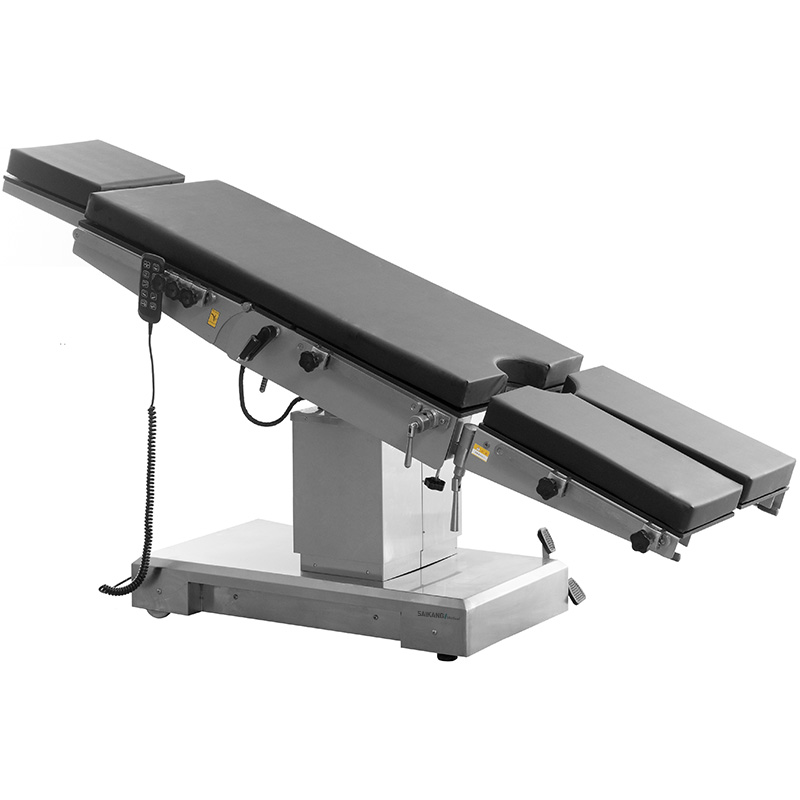

* Electric control the height lifting, trendelenburg and reverse trendelenburg, tilt, back plate folding up and down, easy and convenient operation.

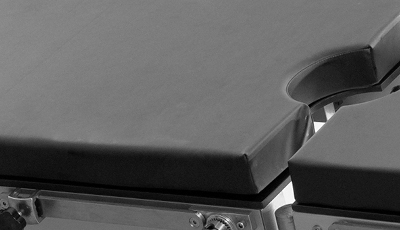

* 300mm horizontal movement function, with high strength phenolic resin table top, could be used for X-ray and C-arm.
Technical parameters
Technical configuration
* Electric control the height lifting, trendelenburg and reverse trendelenburg, tilt, back plate folding up and down, easy and convenient operation.
* 300mm horizontal movement function, with high strength phenolic resin table top, could be used for X-ray and C-arm.
Technical parameters

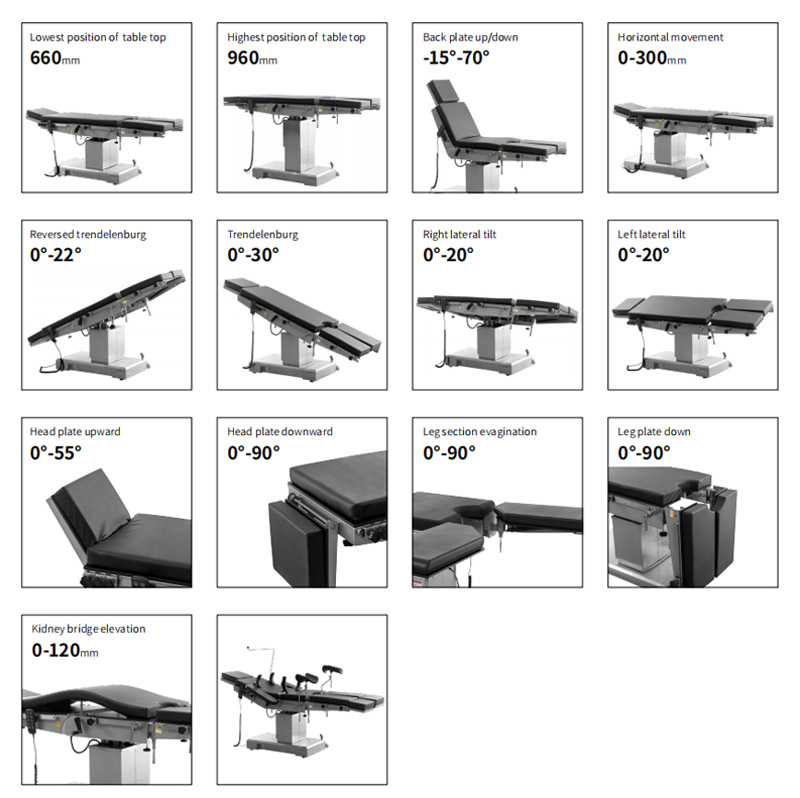

| External size (LxWxH) | 2000x500x(660-960)mm |
| Reverse trendelenburg | 0-22° |
| Trendelenburg | 0-30° |
| Lateral tilt left/right | 0-20° |
| Head plate up/down | 50°/90° |
| Back plate up/down | 70°/15° |
| Leg plate down | 0-90° |
| Leg plate outwards | 0-90° |
| Kidney bridge elevation | 0-120mm |
| Horizontal sliding | 0-300mm |
| Safe working load | 250kg |
Technical configuration
| Arm support | 2pcs |
| Leg support | 2pcs |
| Body Suppport | 2pcs |

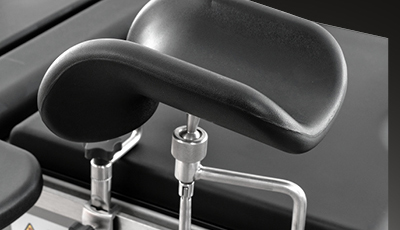

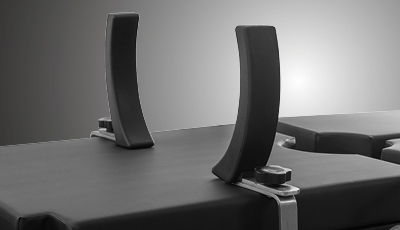

| Shoulder Support | 2pcs |
| Slider | 12pcs |
| Tightener | 2pcs |

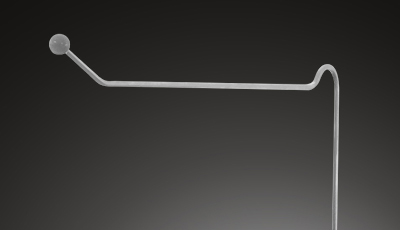

| Anaesthetic Screen | 1pc |

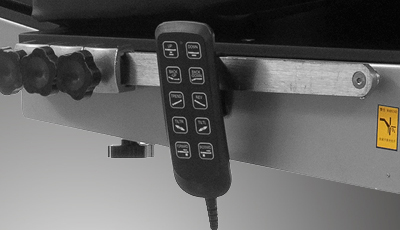

| Hand controller | 1pc |
| Handwheel | 1pc |
