Important quality control

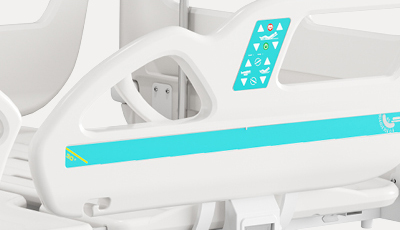

* PP side rail extra height

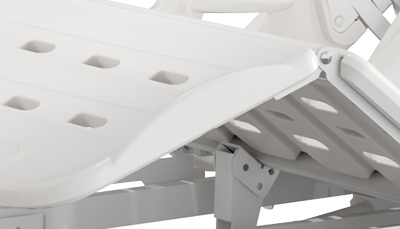

* PP bed platform with integrated mattress retainer

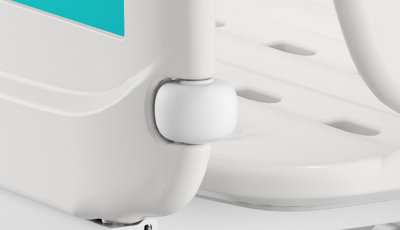

* PP bed ends with safe lock with Φ65 bumper wheels
Options
* Battery back-up
* Bed extension
* Integrated control panel
* Weighing system
* Nurse controller
* Cardiac Chair Position
* Auto break at 30°
* Emergency stop button
* Wheels directional function
* Night light
* Manual cpr
* X-ray translucent mattress platform (back section)
* Utility shelf
* Trapeze bracket/pole
Technical parameters
Technical configuration
* PP side rail extra height
* PP bed platform with integrated mattress retainer
* PP bed ends with safe lock with Φ65 bumper wheels
Options
* Battery back-up
* Bed extension
* Integrated control panel
* Weighing system
* Nurse controller
* Cardiac Chair Position
* Auto break at 30°
* Emergency stop button
* Wheels directional function
* Night light
* Manual cpr
* X-ray translucent mattress platform (back section)
* Utility shelf
* Trapeze bracket/pole
Technical parameters
| External size (LxWxH) | 2085x1025x455-745 mm |
| Mattress platform | 1925x900mm |
| Safe working load | 250kg |
| Back-rest adjustment | 0-75°(±5°) |
| Knee-rest adjustment | 0-32°(±5°) |
| Reverse trendelenburg | 0-12° |
| Trendelenburg | 0-12° |

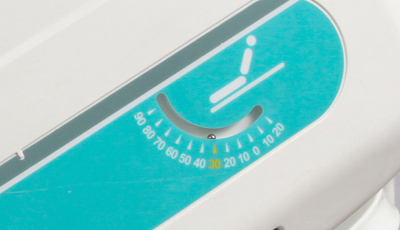

| Angle indicator | 0-90° |
| Auto-regression | 100+90 mm |

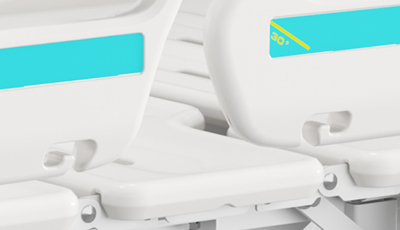

| Position line | 30° |
Technical configuration
| Linear motor | 4pcs |
| Hand controller | 1pc |

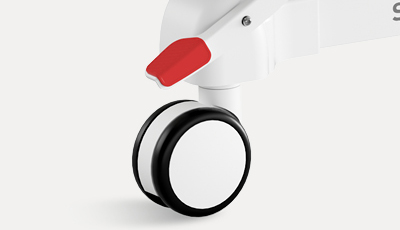

| 5'' Double side castors, central locking | 4pcs |
| PP side rail extra height | 1set |
| PP bed ends with safe lock with Φ65 bumper wheels | 1set |

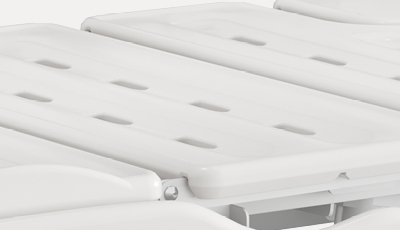

| PP bed platform with integrated mattress retainer | 1set |
| Patent angle indicator for back-rest and trendelenburg position | 4pcs |

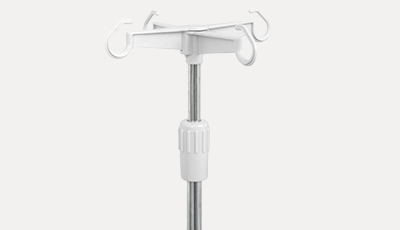

| IV pole 4 hooks | 1set |
| IV pole prevision | 4pcs |

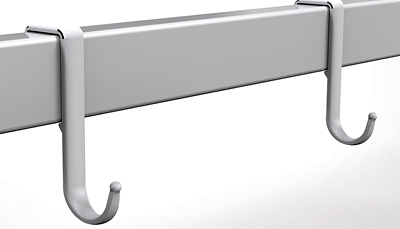

| Drainage hook | 2pcs |

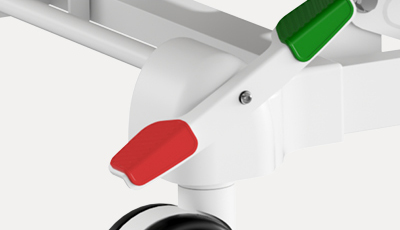

| Central locking pedal | 2pcs |
